Why you should always install new brake shims with new brake pads. DIYers often reuse old brake pad shims and then complain about noise shortly after installing new brake pads. But it can deteriorate and harden over time due to the high heat in braking systems. That's why it never pays to reuse old shims. In respect to this, what is the purpose of brake shims?
Brake shims prevent and reduce the transmission and amplitude of vibrational forces. This is achieved with dampening material bonded to the pad assembly. Shims also add mass to the brake that can dampen vibrations in the pad and caliper.
Similarly, are brake shims necessary? Not all brake pads come with shims as they aren't required and function perfectly without needing them. It is often misdiagnosed that the brake rotors themselves are the cause of excessive brake noise such as squeaking or squealing when using moderate brake pedal pressure.
Similarly one may ask, do you grease brake pad shims?

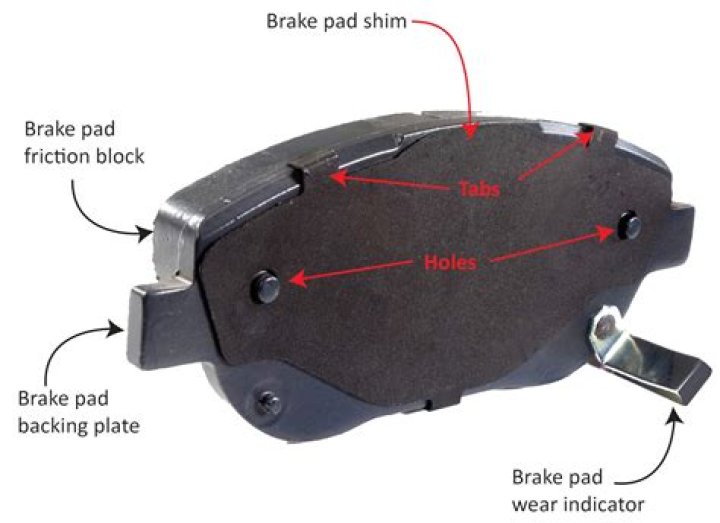

Often, a small packet of graphite-based grease will come with the brake pads. Apply this to the clips of the new brake pads to keep them from squeaking, as shown in the photo above. Some of the grease can be applied to the ears and between any loose metal shims, too.
Can you reuse brake clips?
They know it does. A 2016 study in an independent automotive testing lab in Sweden proved that reusing old clips wears out new pads prematurely and leads to more noise, costing customers extra money and causing a lot of potential comebacks.
Related Question Answers
Where do brake shims go?
These anti-squeal shims are basically adhesive (or non-adhesive) pads made of either rubber or metal. They go in between the middle of the brake calipers and brake pads. That way, the brake shims can adjust the differences and fix the imperfections between the two so that the noises are reduced or eliminated entirely. How do brake shims work?
Brake shims prevent the pads and rotors from clanging against each other. Brake shims are thin layers of rubber or metal that fit between the brake pads and the rotors to correct small imperfections that cause brake noise. They keep the pads and rotors from banging against each other or squealing. How do you install brake shims?
How to Install Shims for Front Brake Pads - Park the vehicle on a firm and level surface.
- Remove the two caliper-guide-rod bolts.
- Remove any retaining clips that hold the brake pads in the caliper; slide the brake pads out from the caliper.
- Retract the caliper piston with a brake-piston retractor.
- Apply the shim to the back of the brake pad.
Can you install brake pads without shims?
On most of the newer cars, these brake shims are mainly used to keep the noise down and any rattles to a minimum. Not all brake pads come with shims as they aren't required and function perfectly without needing them. How do shotgun shims work?
Up and down movement of the point of impact is adjusted by the drop of the stock. If a particular shotgun shoots too high, then the lower shim is inserted. If it's a wooden comb, it can be carefully filed and sanded to bring about the correct impact. Why did my brakes fall off?
If the fasteners somehow vibrated loose and came out the pad is still sandwiched between the caliper and brake rotor making it impossible to fall out anyway. If the fasteners somehow vibrated loose and came out the pad is still sandwiched between the caliper and brake rotor making it impossible to fall out anyway. Should brake pads be loose in caliper?
Your brake pads need to fit exactly in the width of the caliper. You can't have any space there as it might be dangerous if you need to push hard on the brakes. If you just replaced your brakes its best to "brake them in" to make them last longer and let them do their job better. Do you grease back of brake pads?
Answer: Personally, I prefer to lube the entire backing of the pad and all contact points with a silicone grease. A light layer should be applied between the shim and the metal part on the back of the pad. You might get some brake dust to stick to the grease but it doesn't inhibit it's performance. What kind of grease do you use on brake caliper pins?
Permatex Ultra Disc Brake Caliper Lubricant is a green, nonmelting, synthetic lubricant. It is formulated to lubricate under the most adverse brake conditions, assuring that metal to metal contact areas remain lubricated throughout the pad life. For use on caliper pins, hardware, and the back-side of brake pads. What happens if you don't use brake grease?
Keeping some brake grease or "anti-squeal" on the back of the pad metal keeps the metal to metal vibrations to a minimum. The action of the pad being pressed against the disk is what causes this, but the noise is transmitted to and amplified by the bare metal to metal contact of the caliper and brake pad back plate. Where do you put the grease when changing brake pads?
A thin layer of brake lubricant is that is needed. Apply lubricant on caliper pins, clips, edges of the brake pad mounting tabs, and back side of the brake pads if needed. *Do not apply lube on the friction side of the brake pads. Where do you lubricate drum brakes?
The parking brake usually uses the rear drum brakes in your car, so lubricate the parking brake cable and any linkages or moving parts. Make sure you lubricate the separator located about halfway up the shoe. Use lubricant anywhere you find metal-to-metal contact between moving parts, such as where the shoes slide. What happens if you put brake pads on backwards?
RE: Can Brake Pads actually be put on backwards?? No. It really doesn't matter. Generally you want to get the pad so the wear indicator will make contact WITH the turn of the rotor instead of against it, but if you don't its not a big deal. Should brakes touch rotors?
Yes, although you might not be able to see it with the naked eye. When pressure is released, the brake pads “pull back” slightly so that they do not actually touch the rotors unless pressure is applied. How long should brake pads last?
about 50,000 miles
Can I use lithium grease on brake calipers?
White lithium is a low-temperature grease that can be used to lubricate drum brake hardware and backing plates, but lacks the heat-resistance for front disc brake applications. Brake lubricant can also be used to dampen vibrations between disc brake pads and caliper pistons. How much are brake pads at Autozone?
That said, for brake pad replacement only, you can expect to pay between $35 and $150 for parts for all four wheels. Labor typically runs between $80 and $120 per axle, making for a grand total of between $115 and $270 per axle. Replacing rotors with your brake pads is critical for best braking and maximum safety. Can you put brake pads on without clips?
Brake clips help push the brake pads out when they're not applied. The pads probably won't fit well without them and clunk around and make noise. Worst case scenario is that you gouge the brake caliper bracket and eventually ruin it. Should brake hardware replace?
“Brake hardware is subject to the same heat, moisture and corrosion that wear out rotors and pads, and it's important to make sure a new hardware kit is included when making a brake repair.” Brake drag, grinding, poor pedal feel and uneven pad wear are also common problems due to worn brake hardware. Are abutment clips necessary?
Abutment clips need to be replaced with the brake pads. Heat and cooling cycles can weaken springs and clips causing noise. New abutment clips are being used on some new vehicles that help to push the pads back from the rotor to reduce drag and allow for less wear on the pads and rotors. What is an abutment clip?
Abutment clips reside on the caliper bracket lands on most vehicles. They create a uniform surface for the pads to make contact with. New abutment clips are being used on some new vehicles that help to push the pads back from the rotor to reduce drag and allow for less wear on the pads and rotors. Why do my brakes rattle?
So if you hear any rattling noises or brake pad rattle check you have the right pads in your car. Dirt or rust on those slide ways will prevent the shims from seating properly and could cause the pads to stick in the caliper. This will cause brake noise or brake squeal and cause the pads to overheat the brake rotor.
