Irradiance is the amount of energy emitted at each wavelength from a radiant sample such as an LED, a laser or the sun. Absolute spectral irradiance requires a lamp of known spectral power output to calibrate the spectrometer's response at each pixel.

Likewise, what does irradiance measure?

Irradiance is a measurement of solar power and is defined as the rate at which solar energy falls onto a surface. The unit of power is the Watt (abbreviated W).

Also Know, what is light irradiance? Irradiance is the amount of light energy from one thing hitting a square meter of another each second. Photons that carry this energy have wavelengths from energetic X-rays and gamma rays to visible light to the infrared and radio.

Also Know, how is irradiance calculated?

The spectral irradiance can be determined from the photon flux by converting the photon flux at a given wavelength to W/m² as shown in the section on Photon Flux. The result is then divided by the given wavelength, as shown in the equation below.

What is radiance and irradiance?

Vaguely speaking, irradiance is the amount of light incoming to a certain point from possibly all directions, while radiance is the amount of light incoming to a point from a single directions.

Related Question Answers

How do you measure light irradiance?

It is measured in footcandles or lux – it is the amount of light (lumens) falling on a surface (over any given square foot or square meter). Therefore, light intensity is measured in terms of lumens per square foot (footcandles) or lumens per square meter (lux).

Is solar irradiance constant?

Above the earth's atmosphere, solar radiation has an intensity of approximately 1380 watts per square meter (W/m2). This value is known as the Solar Constant. At our latitude, the value at the surface is approximately 1000 W/m2 on a clear day at solar noon in the summer months.

What type of system for measuring solar radiation can measure 180 degrees of view?

pyranometer

What does kwh m2 mean?

Measurement. Insolation is a measure of solar radiation energy received on a given surface area in a given time. It is commonly expressed as average irradiance in watts per square meter (W/m2) or kilowatt-hours per square meter per day (kW·h/(m2·day)) (or hours/day).

Is irradiance the same as intensity?

It is important to realize that the intensity is defined as the amount of energy going through an area perpendicular to the beam, while irradiance refers to what amount of energy arrives on a certain surface with a given orientation.

What is the instrument used to measure solar radiation?

Solar radiance measurements consist of global and/or direct radiation measurements taken periodically throughout the day. The measurements are taken using either a pyranometer (measuring global radiation) and/or a pyrheliometer (measuring direct radiation).

What is irradiance sensor?

Irradiance sensor (SE1000-SEN-IRR-S1): The irradiance sensor is a high-quality solar cell. It measures solar irradiance levels for photovoltaic systems. The sensor's irradiance output signal is 0 to 1V covering a 0 to 1000W/m2 range.

How is sunlight intensity measured?

Instruments used to measure insolation are called pyranometers (from the Greek "pyr" (fire) and "ano" (sky). Ideally, pyranometers should measure all the radiation from the sun, across the entire electromagnetic spectrum (broadband radiation).

What is direct normal irradiance?

Direct Normal Irradiation (DNI) is the amount of solar radiation received per unit area by a surface that is always held perpendicular (or normal) to the rays that come in a straight line from the direction of the sun at its current position in the sky.

What does W m2 measure?

Acronym. Definition. W/M2. Watt Per Square Metre (energy measurement)

How is UV irradiance calculated?

One of the most common ways to measure UV irradiance is in watts per square meter (W/m²). An irradiance value of 5 watts per square meter, for example, tells us that a total of 5 watts of UV energy are falling across a one square meter area. The higher the irradiance, the higher the UV level.

How do you find the angle of insolation?

Hour angle (H) is calculated using: H = 15 deg x (time - 12). Time equals hour of day from midnight Zenith angle (Z) is calculated using : Z = cos-1 (sinXsinY + cosXcosYcosH). Zenith angle is the angle from the point directly overhead to the point of the sun's position in the sky.

When the sun is directly on the top of head it as referred to?

zenith

What is DHI in solar?

Diffuse Horizontal Irradiance (DHI) is the amount of radiation received per unit area by a surface (not subject to any shade or shadow) that does not arrive on a direct path from the sun, but has been scattered by molecules and particles in the atmosphere and comes equally from all directions.

What is the oldest unit of solar radiation?

langley (Ly)

What is the total amount of solar energy received by Earth and the atmosphere?

What is total amount of solar energy received by earth and atmosphere? Explanation: Even if we use 5% of this energy, it is more than 50 times our requirement. The total solar radiation absorbed by the earth and its atmosphere is 3.8 X 1024 Joules/year.

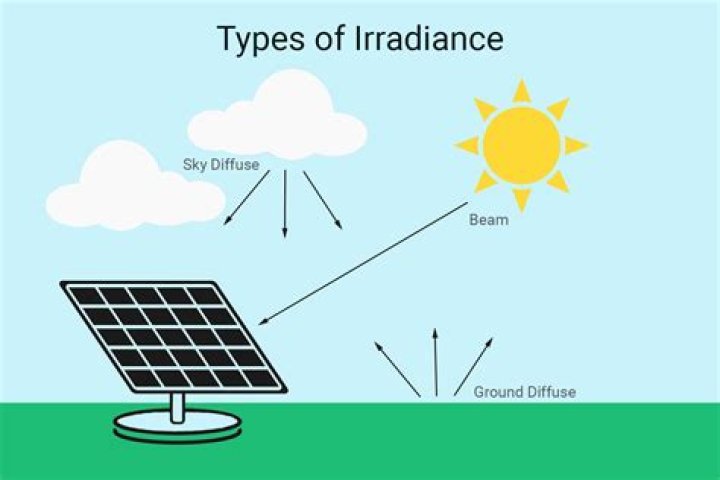

What is global irradiance?

Global Horizontal Irradiance (GHI) is the total amount of shortwave radiation received from above by a surface horizontal to the ground. This value is of particular interest to photovoltaic installations and includes both Direct Normal Irradiance (DNI) and Diffuse Horizontal Irradiance (DIF).

What is difference between insolation and irradiance?

Or in other words: Irradiance is an instantaneous measurement of solar power over some area. Insolation is a measurement of the cumulative energy measured over some area for a defined period of time (e.g., annual, monthly, daily, etc.). The common unit of insolation is kilowatt hours per square meter.

How many watts is a square meter?

How do I calculate Watts per Square Metre? Measure each room's width and length in metres. Multiply the numbers by 3.280839895.

What is incident irradiance?

Incident solar radiation (G_g) is the radiant solar energy that hits the earth's surface and is referred as “global radiation” on a surface (W m⁻²).

What is laser irradiance?

Irradiance is the power of the laser, spread out over an area. Because laser beams diverge, the irradiance will be higher (more hazardous) closer to the laser, and will be lower (less hazardous) farther from the laser. Irradiance, milliwatts per square centimeter 0.1271 mW/cm²

What is the unit of intensity of radiation?

The SI unit of radiant intensity is the watt per steradian (W/sr), while that of spectral intensity in frequency is the watt per steradian per hertz (W·sr⁻¹·Hz⁻¹) and that of spectral intensity in wavelength is the watt per steradian per metre (W·sr⁻¹·m⁻¹)—commonly the watt per steradian per nanometre (W·sr⁻¹·nm⁻¹).

What is the irradiance of the sun dependent on?

The amount of irradiance depends on the latitude. The maximum irradiance corresponds to surfaces, tilted at an angle equal to about the latitude minus 10°.

What is irradiance in solar energy?

- Solar irradiance is the rate at which radiant power is incident on a surface per unit area of surface. The symbol is G and the unit is W per square meter. -Solar irradiation is the incident energy per unit area on a surface, found by integration of irradiance over specified time (hour/day).

Is Radiance a property of light?

The light at the image plane, however, fills a larger solid angle so the radiance comes out to be the same assuming there is no loss at the lens. Spectral radiance expresses radiance as a function of frequency or wavelength. Radiance is the integral of the spectral radiance over all frequencies or wavelengths.

What is the difference between radiance and luminance?

The radiant flux emitted from a point source in a certain direction per unit solid angle per unit projected area perpendicular to the specified direction is called radiance. In case of photometric quantity, the radiance is called as Luminance.

Is luminance a property of light?

Luminance is the measure of an object's brightness or the amount of light that is coming off an illuminated surface. The unit of measurement is the foot-lambert. The brightness of an object has to do with the amount of light that hits it and the amount of light that is reflected back.

What is radiance in image processing?

Radiance is the amount of radiation coming from an area. To derive a radiance image from an uncalibrated image, a gain and offset must be applied to the pixel values. These gain and offset values are typically retrieved from the image's metadata or received from the data provider.

What is the total radiance measured at the sensor?

Radiance at the Sensor's Aperture

Radiance is the “flux of energy (primarily irradiant or incident energy) per solid angle leaving a unit surface area in a given direction”, “Radiance is what is measured at the sensor and is somewhat dependent on reflectance” (NASA, 2011, p. 47).

What does radiant flux mean?

: the rate of emission or transmission of radiant energy.

What is radiant flux density?

The radiant flux density is the amount of radiant flux (or power) crossing a unit of area, and is measured in W m^-2. Radiant flux density is also known as intensity or irradiance.

What is Radiance Skin?

Skin radiance is the glowy, vibrant look we associate with healthy, well-rested skin. Skin tone, luminosity, firmness, and discolouration (think dark circles and sun damage) can all have an effect on the natural appearance of radiant skin.

What is scene radiance?

Radiance is a directional quantity. Radiant power travelling in a given direction per unit area (measured perpendicular to the direction of travel) per unit solid angle. Image irradiance is proportional to scene radiance in the direction of the camera.
